Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Frameset
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

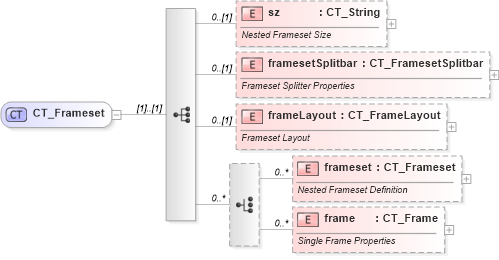

Collapse XSD Schema Diagram:
Drilldown into frame in schema wml_xsd Drilldown into frameset in schema wml_xsd Drilldown into frameLayout in schema wml_xsd Drilldown into framesetSplitbar in schema wml_xsd Drilldown into sz in schema wml_xsdXSD Diagram of CT_Frameset in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Frameset">
    <xsd:sequence>
        <xsd:element name="sz" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Nested Frameset Size</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="framesetSplitbar" type="CT_FramesetSplitbar" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Frameset Splitter Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="frameLayout" type="CT_FrameLayout" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Frameset Layout</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0" maxOccurs="unbounded">
            <xsd:element name="frameset" type="CT_Frameset" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Nested Frameset Definition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="frame" type="CT_Frame" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Single Frame Properties</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sz w:sz 0 (1)
framesetSplitbar w:framesetSplitbar 0 (1)
frameLayout w:frameLayout 0 (1)
frameset w:frameset 0 unbounded
frame w:frame 0 unbounded
Collapse Derivation Tree:
Collapse References:
w:frameset, w:frameset
