Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_FutureMetadata
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheetMetadata.xsd
Abstract
Collapse XSD Schema Diagram:

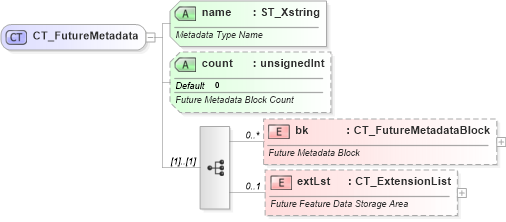

Drilldown into extLst in schema sml-sheetmetadata_xsd Drilldown into bk in schema sml-sheetmetadata_xsd Drilldown into count in schema sml-sheetmetadata_xsd Drilldown into name in schema sml-sheetmetadata_xsdXSD Diagram of CT_FutureMetadata in schema sml-sheetmetadata_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_FutureMetadata">
    <xsd:sequence>
        <xsd:element name="bk" type="CT_FutureMetadataBlock" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Future Metadata Block</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" maxOccurs="1" type="CT_ExtensionList">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" type="ST_Xstring" use="required">
        <xsd:annotation>
            <xsd:documentation>Metadata Type Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="count" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Future Metadata Block Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bk nsM:bk 0 unbounded
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Required
count nsM:count 0 Optional
Collapse Derivation Tree:
Collapse References:
nsM:futureMetadata
