Definition Type: ComplexType
Name: CT_GeomGuide
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeGeometry.xsd
Abstract

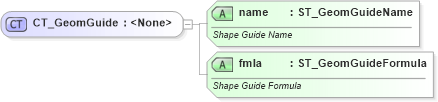

Collapse XSD Schema Diagram:
Drilldown into fmla in schema dml-shapegeometry_xsd Drilldown into name in schema dml-shapegeometry_xsdXSD Diagram of CT_GeomGuide in schema dml-shapegeometry_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GeomGuide">
    <xsd:attribute name="name" type="ST_GeomGuideName" use="required">
        <xsd:annotation>
            <xsd:documentation>Shape Guide Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fmla" type="ST_GeomGuideFormula" use="required">
        <xsd:annotation>
            <xsd:documentation>Shape Guide Formula</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
name a:name Required
fmla a:fmla Required
Collapse Derivation Tree:
  • CT_GeomGuide
Collapse References:
a:gd
