Definition Type: ComplexType
Name: CT_GradientFill
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-styles.xsd
Abstract

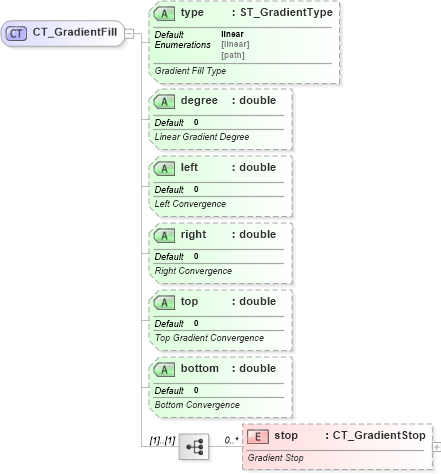

Collapse XSD Schema Diagram:
Drilldown into stop in schema sml-styles_xsd Drilldown into bottom in schema sml-styles_xsd Drilldown into top in schema sml-styles_xsd Drilldown into right in schema sml-styles_xsd Drilldown into left in schema sml-styles_xsd Drilldown into degree in schema sml-styles_xsd Drilldown into type in schema sml-styles_xsdXSD Diagram of CT_GradientFill in schema sml-styles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GradientFill">
    <xsd:sequence>
        <xsd:element name="stop" type="CT_GradientStop" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Gradient Stop</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="type" type="ST_GradientType" use="optional" default="linear">
        <xsd:annotation>
            <xsd:documentation>Gradient Fill Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="degree" type="xsd:double" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Linear Gradient Degree</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="left" type="xsd:double" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Left Convergence</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="right" type="xsd:double" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Right Convergence</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="top" type="xsd:double" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Top Gradient Convergence</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bottom" type="xsd:double" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Bottom Convergence</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
stop nsM:stop 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type nsM:type linear Optional
degree nsM:degree 0 Optional
left nsM:left 0 Optional
right nsM:right 0 Optional
top nsM:top 0 Optional
bottom nsM:bottom 0 Optional
Collapse Derivation Tree:
Collapse References:
nsM:gradientFill
