Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_GraphicalObjectData
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-graphicalObject.xsd
Abstract
Collapse XSD Schema Diagram:

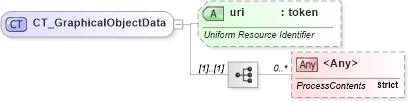

Drilldown into uri in schema dml-graphicalobject_xsdXSD Diagram of CT_GraphicalObjectData in schema dml-graphicalobject_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GraphicalObjectData">
    <xsd:sequence>
        <xsd:any minOccurs="0" maxOccurs="unbounded" processContents="strict">
        </xsd:any>
    </xsd:sequence>
    <xsd:attribute name="uri" type="xsd:token">
        <xsd:annotation>
            <xsd:documentation>Uniform Resource Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
uri a:uri (Optional)
Collapse Derivation Tree:
Collapse References:
a:graphicData
