Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_GroupItems
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

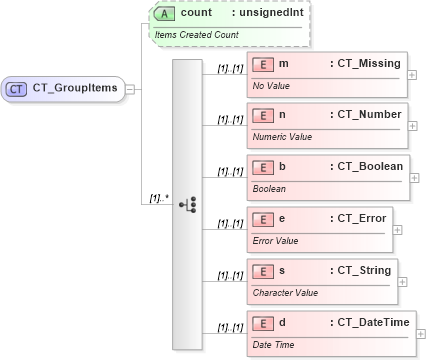

Collapse XSD Schema Diagram:
Drilldown into d in schema sml-pivottable_xsd Drilldown into s in schema sml-pivottable_xsd Drilldown into e in schema sml-pivottable_xsd Drilldown into b in schema sml-pivottable_xsd Drilldown into n in schema sml-pivottable_xsd Drilldown into m in schema sml-pivottable_xsd Drilldown into count in schema sml-pivottable_xsdXSD Diagram of CT_GroupItems in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GroupItems">
    <xsd:choice maxOccurs="unbounded">
        <xsd:element name="m" type="CT_Missing">
            <xsd:annotation>
                <xsd:documentation>No Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="n" type="CT_Number">
            <xsd:annotation>
                <xsd:documentation>Numeric Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="b" type="CT_Boolean">
            <xsd:annotation>
                <xsd:documentation>Boolean</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="e" type="CT_Error">
            <xsd:annotation>
                <xsd:documentation>Error Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="s" type="CT_String">
            <xsd:annotation>
                <xsd:documentation>Character Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="d" type="CT_DateTime">
            <xsd:annotation>
                <xsd:documentation>Date Time</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="count" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Items Created Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
m nsM:m (1) (1)
n nsM:n (1) (1)
b nsM:b (1) (1)
e nsM:e (1) (1)
s nsM:s (1) (1)
d nsM:d (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
count nsM:count (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:groupItems
