Definition Type: ComplexType
Name: CT_GroupLevel
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

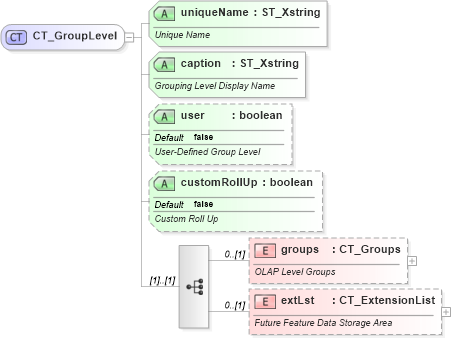

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into groups in schema sml-pivottable_xsd Drilldown into customRollUp in schema sml-pivottable_xsd Drilldown into user in schema sml-pivottable_xsd Drilldown into caption in schema sml-pivottable_xsd Drilldown into uniqueName in schema sml-pivottable_xsdXSD Diagram of CT_GroupLevel in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GroupLevel">
    <xsd:sequence>
        <xsd:element name="groups" minOccurs="0" type="CT_Groups">
            <xsd:annotation>
                <xsd:documentation>OLAP Level Groups</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="uniqueName" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="caption" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Grouping Level Display Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="user" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>User-Defined Group Level</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="customRollUp" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Custom Roll Up</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
groups nsM:groups 0 (1)
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
uniqueName nsM:uniqueName Required
caption nsM:caption Required
user nsM:user false (Optional)
customRollUp nsM:customRollUp false (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:groupLevel
