Definition Type: ComplexType
Name: CT_HeaderFooter
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-slide.xsd
Abstract

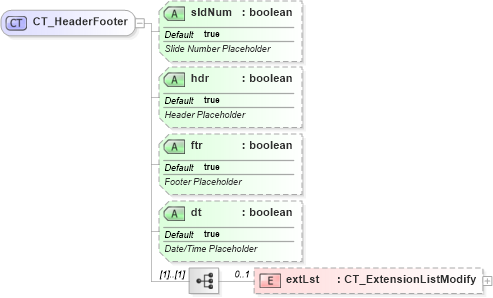

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-slide_xsd Drilldown into dt in schema pml-slide_xsd Drilldown into ftr in schema pml-slide_xsd Drilldown into hdr in schema pml-slide_xsd Drilldown into sldNum in schema pml-slide_xsdXSD Diagram of CT_HeaderFooter in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_HeaderFooter">
    <xsd:sequence>
        <xsd:element name="extLst" type="CT_ExtensionListModify" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="sldNum" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Slide Number Placeholder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hdr" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Header Placeholder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ftr" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Footer Placeholder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dt" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Date/Time Placeholder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
sldNum p:sldNum true Optional
hdr p:hdr true Optional
ftr p:ftr true Optional
dt p:dt true Optional
Collapse Derivation Tree:
Collapse References:
p:hf, p:hf, p:hf, p:hf
