Definition Type: ComplexType
Name: CT_HeaderFooter
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract
Collapse XSD Schema Diagram:

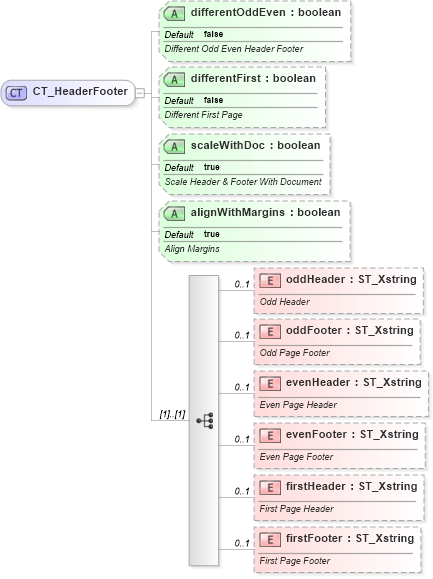

Drilldown into firstFooter in schema sml-sheet_xsd Drilldown into firstHeader in schema sml-sheet_xsd Drilldown into evenFooter in schema sml-sheet_xsd Drilldown into evenHeader in schema sml-sheet_xsd Drilldown into oddFooter in schema sml-sheet_xsd Drilldown into oddHeader in schema sml-sheet_xsd Drilldown into alignWithMargins in schema sml-sheet_xsd Drilldown into scaleWithDoc in schema sml-sheet_xsd Drilldown into differentFirst in schema sml-sheet_xsd Drilldown into differentOddEven in schema sml-sheet_xsdXSD Diagram of CT_HeaderFooter in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_HeaderFooter">
    <xsd:sequence>
        <xsd:element name="oddHeader" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Odd Header</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="oddFooter" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Odd Page Footer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="evenHeader" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Even Page Header</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="evenFooter" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Even Page Footer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="firstHeader" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>First Page Header</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="firstFooter" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>First Page Footer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="differentOddEven" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Different Odd Even Header Footer</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="differentFirst" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Different First Page</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="scaleWithDoc" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Scale Header &amp; Footer With Document</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="alignWithMargins" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Align Margins</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
oddHeader nsM:oddHeader 0 1
oddFooter nsM:oddFooter 0 1
evenHeader nsM:evenHeader 0 1
evenFooter nsM:evenFooter 0 1
firstHeader nsM:firstHeader 0 1
firstFooter nsM:firstFooter 0 1
Collapse Child Attributes:
Name Type Default Value Use
differentOddEven nsM:differentOddEven false (Optional)
differentFirst nsM:differentFirst false (Optional)
scaleWithDoc nsM:scaleWithDoc true (Optional)
alignWithMargins nsM:alignWithMargins true (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:headerFooter, nsM:headerFooter, nsM:headerFooter, nsM:headerFooter, nsM:headerFooter, nsM:headerFooter
