Definition Type: ComplexType
Name: CT_HSLEffect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd
Abstract

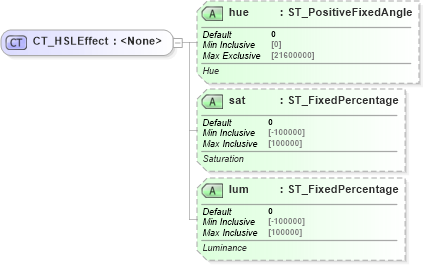

Collapse XSD Schema Diagram:
Drilldown into lum in schema dml-shapeeffects_xsd Drilldown into sat in schema dml-shapeeffects_xsd Drilldown into hue in schema dml-shapeeffects_xsdXSD Diagram of CT_HSLEffect in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_HSLEffect">
    <xsd:attribute name="hue" type="ST_PositiveFixedAngle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Hue</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sat" type="ST_FixedPercentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Saturation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="lum" type="ST_FixedPercentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Luminance</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
hue a:hue 0 Optional
sat a:sat 0 Optional
lum a:lum 0 Optional
Collapse Derivation Tree:
Collapse References:
a:hsl, a:hsl
