Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Hyperlink
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

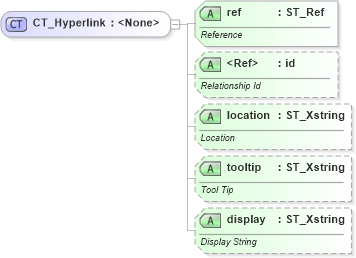

Collapse XSD Schema Diagram:
Drilldown into display in schema sml-sheet_xsd Drilldown into tooltip in schema sml-sheet_xsd Drilldown into location in schema sml-sheet_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into ref in schema sml-sheet_xsdXSD Diagram of CT_Hyperlink in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Hyperlink">
    <xsd:attribute name="ref" type="ST_Ref" use="required">
        <xsd:annotation>
            <xsd:documentation>Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:id" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relationship Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="location" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Location</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tooltip" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Tool Tip</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="display" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Display String</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
ref nsM:ref Required
id r:id Optional
location nsM:location Optional
tooltip nsM:tooltip Optional
display nsM:display Optional
Collapse Derivation Tree:
Collapse References:
nsM:hyperlink
