Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_I
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract
Collapse XSD Schema Diagram:

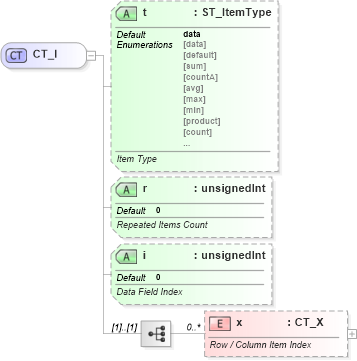

Drilldown into x in schema sml-pivottable_xsd Drilldown into i in schema sml-pivottable_xsd Drilldown into r in schema sml-pivottable_xsd Drilldown into t in schema sml-pivottable_xsdXSD Diagram of CT_I in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_I">
    <xsd:sequence>
        <xsd:element name="x" minOccurs="0" maxOccurs="unbounded" type="CT_X">
            <xsd:annotation>
                <xsd:documentation>Row / Column Item Index</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="t" type="ST_ItemType" default="data">
        <xsd:annotation>
            <xsd:documentation>Item Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="r" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Repeated Items Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="i" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Data Field Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
x nsM:x 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
t nsM:t data (Optional)
r nsM:r 0 (Optional)
i nsM:i 0 (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:insM:i,
