Definition Type: ComplexType
Name: CT_LegendEntry
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

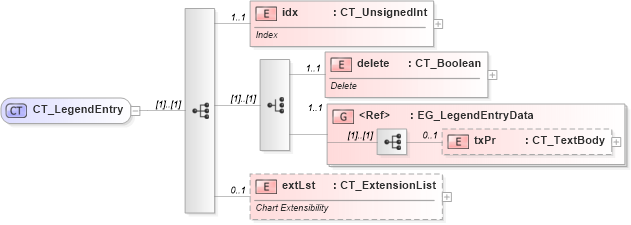

Drilldown into extLst in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into EG_LegendEntryData in schema dml-chart_xsd Drilldown into delete in schema dml-chart_xsd Drilldown into idx in schema dml-chart_xsdXSD Diagram of CT_LegendEntry in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_LegendEntry">
    <xsd:sequence>
        <xsd:element name="idx" type="CT_UnsignedInt" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Index</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice>
            <xsd:element name="delete" type="CT_Boolean" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Delete</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:group ref="EG_LegendEntryData" minOccurs="1" maxOccurs="1">
            </xsd:group>
        </xsd:choice>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idx nsA:idx 1 1
delete nsA:delete 1 1
txPr nsA:txPr 0 1
extLst nsA:extLst 0 1
<xs:group> nsA:EG_LegendEntryData 1 1
