Definition Type: ComplexType
Name: CT_LevelGroup
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

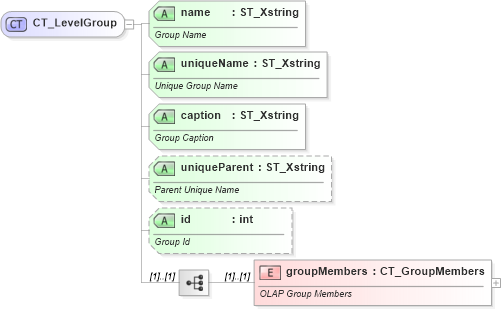

Collapse XSD Schema Diagram:
Drilldown into groupMembers in schema sml-pivottable_xsd Drilldown into id in schema sml-pivottable_xsd Drilldown into uniqueParent in schema sml-pivottable_xsd Drilldown into caption in schema sml-pivottable_xsd Drilldown into uniqueName in schema sml-pivottable_xsd Drilldown into name in schema sml-pivottable_xsdXSD Diagram of CT_LevelGroup in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_LevelGroup">
    <xsd:sequence>
        <xsd:element name="groupMembers" type="CT_GroupMembers">
            <xsd:annotation>
                <xsd:documentation>OLAP Group Members</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Group Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="uniqueName" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Unique Group Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="caption" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Group Caption</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="uniqueParent" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Parent Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="id" type="xsd:int">
        <xsd:annotation>
            <xsd:documentation>Group Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
groupMembers nsM:groupMembers (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Required
uniqueName nsM:uniqueName Required
caption nsM:caption Required
uniqueParent nsM:uniqueParent (Optional)
id nsM:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:group
