Definition Type: ComplexType
Name: CT_Line3DChart
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

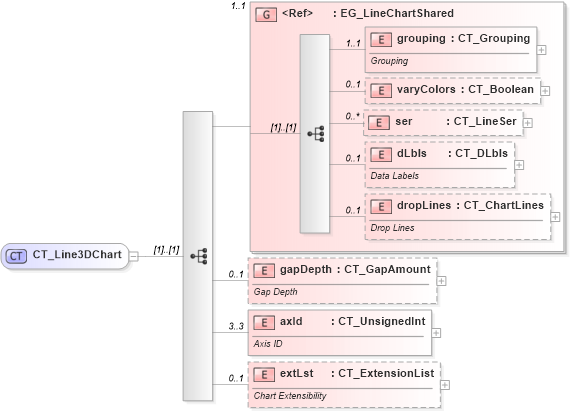

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into gapDepth in schema dml-chart_xsd Drilldown into dropLines in schema dml-chart_xsd Drilldown into dLbls in schema dml-chart_xsd Drilldown into ser in schema dml-chart_xsd Drilldown into varyColors in schema dml-chart_xsd Drilldown into grouping in schema dml-chart_xsd Drilldown into EG_LineChartShared in schema dml-chart_xsdXSD Diagram of CT_Line3DChart in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Line3DChart">
    <xsd:sequence>
        <xsd:group ref="EG_LineChartShared" minOccurs="1" maxOccurs="1" />
        <xsd:element name="gapDepth" type="CT_GapAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gap Depth</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="axId" type="CT_UnsignedInt" minOccurs="3" maxOccurs="3">
            <xsd:annotation>
                <xsd:documentation>Axis ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
grouping nsA:grouping 1 1
varyColors nsA:varyColors 0 1
ser nsA:ser 0 unbounded
dLbls nsA:dLbls 0 1
dropLines nsA:dropLines 0 1
gapDepth nsA:gapDepth 0 1
axId nsA:axId 3 3
extLst nsA:extLst 0 1
<xs:group> nsA:EG_LineChartShared 1 1
Collapse Derivation Tree:
Collapse References:
nsA:line3DChart
