Definition Type: ComplexType
Name: CT_ManualLayout
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

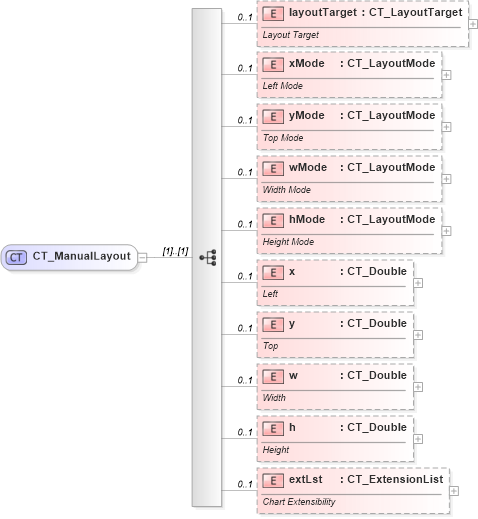

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into h in schema dml-chart_xsd Drilldown into w in schema dml-chart_xsd Drilldown into y in schema dml-chart_xsd Drilldown into x in schema dml-chart_xsd Drilldown into hMode in schema dml-chart_xsd Drilldown into wMode in schema dml-chart_xsd Drilldown into yMode in schema dml-chart_xsd Drilldown into xMode in schema dml-chart_xsd Drilldown into layoutTarget in schema dml-chart_xsdXSD Diagram of CT_ManualLayout in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ManualLayout">
    <xsd:sequence>
        <xsd:element name="layoutTarget" type="CT_LayoutTarget" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Layout Target</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="xMode" type="CT_LayoutMode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Left Mode</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="yMode" type="CT_LayoutMode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Top Mode</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="wMode" type="CT_LayoutMode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Width Mode</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hMode" type="CT_LayoutMode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Height Mode</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="x" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Left</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="y" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Top</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="w" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Width</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="h" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Height</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
layoutTarget nsA:layoutTarget 0 1
xMode nsA:xMode 0 1
yMode nsA:yMode 0 1
wMode nsA:wMode 0 1
hMode nsA:hMode 0 1
x nsA:x 0 1
y nsA:y 0 1
w nsA:w 0 1
h nsA:h 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:manualLayout
