Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Map
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-customXmlMappings.xsd
Abstract

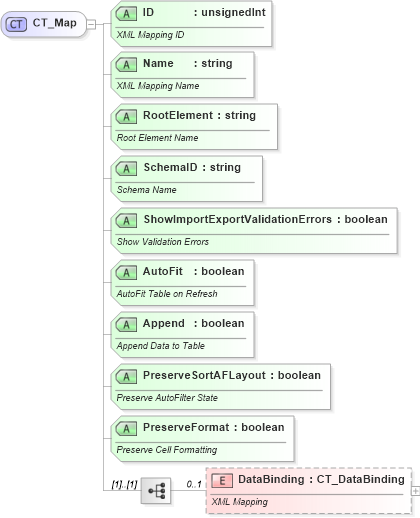

Collapse XSD Schema Diagram:
Drilldown into DataBinding in schema sml-customxmlmappings_xsd Drilldown into PreserveFormat in schema sml-customxmlmappings_xsd Drilldown into PreserveSortAFLayout in schema sml-customxmlmappings_xsd Drilldown into Append in schema sml-customxmlmappings_xsd Drilldown into AutoFit in schema sml-customxmlmappings_xsd Drilldown into ShowImportExportValidationErrors in schema sml-customxmlmappings_xsd Drilldown into SchemaID in schema sml-customxmlmappings_xsd Drilldown into RootElement in schema sml-customxmlmappings_xsd Drilldown into Name in schema sml-customxmlmappings_xsd Drilldown into ID in schema sml-customxmlmappings_xsdXSD Diagram of CT_Map in schema sml-customxmlmappings_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Map">
    <xsd:sequence>
        <xsd:element name="DataBinding" type="CT_DataBinding" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>XML Mapping</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="ID" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>XML Mapping ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="Name" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>XML Mapping Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="RootElement" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Root Element Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="SchemaID" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Schema Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ShowImportExportValidationErrors" type="xsd:boolean" use="required">
        <xsd:annotation>
            <xsd:documentation>Show Validation Errors</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="AutoFit" type="xsd:boolean" use="required">
        <xsd:annotation>
            <xsd:documentation>AutoFit Table on Refresh</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="Append" type="xsd:boolean" use="required">
        <xsd:annotation>
            <xsd:documentation>Append Data to Table</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="PreserveSortAFLayout" type="xsd:boolean" use="required">
        <xsd:annotation>
            <xsd:documentation>Preserve AutoFilter State</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="PreserveFormat" type="xsd:boolean" use="required">
        <xsd:annotation>
            <xsd:documentation>Preserve Cell Formatting</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DataBinding nsM:DataBinding 0 1
Collapse Child Attributes:
Name Type Default Value Use
ID nsM:ID Required
Name nsM:Name Required
RootElement nsM:RootElement Required
SchemaID nsM:SchemaID Required
ShowImportExportValidationErrors nsM:ShowImportExportValidationErrors Required
AutoFit nsM:AutoFit Required
Append nsM:Append Required
PreserveSortAFLayout nsM:PreserveSortAFLayout Required
PreserveFormat nsM:PreserveFormat Required
Collapse Derivation Tree:
Collapse References:
nsM:Map
