Definition Type: ComplexType
Name: CT_MathPr
Namespace: http://schemas.openxmlformats.org/officeDocument/2006/math
Containing Schema: shared-math.xsd
Abstract

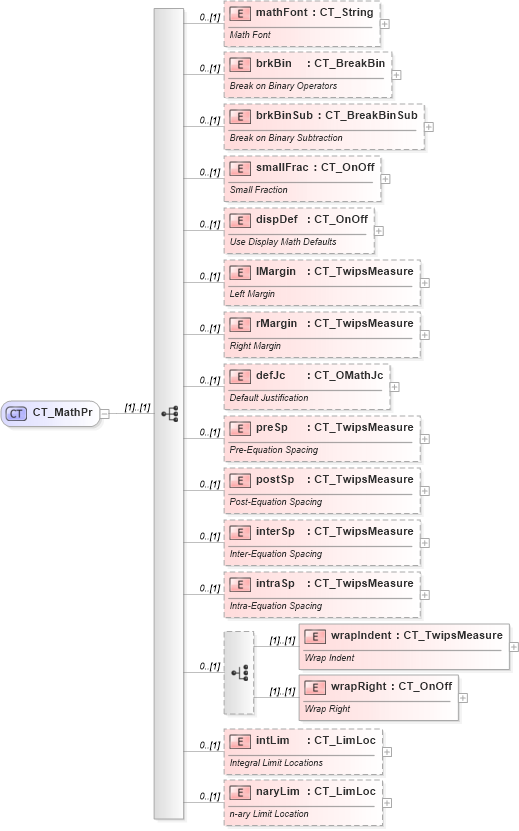

Collapse XSD Schema Diagram:
Drilldown into naryLim in schema shared-math_xsd Drilldown into intLim in schema shared-math_xsd Drilldown into wrapRight in schema shared-math_xsd Drilldown into wrapIndent in schema shared-math_xsd Drilldown into intraSp in schema shared-math_xsd Drilldown into interSp in schema shared-math_xsd Drilldown into postSp in schema shared-math_xsd Drilldown into preSp in schema shared-math_xsd Drilldown into defJc in schema shared-math_xsd Drilldown into rMargin in schema shared-math_xsd Drilldown into lMargin in schema shared-math_xsd Drilldown into dispDef in schema shared-math_xsd Drilldown into smallFrac in schema shared-math_xsd Drilldown into brkBinSub in schema shared-math_xsd Drilldown into brkBin in schema shared-math_xsd Drilldown into mathFont in schema shared-math_xsdXSD Diagram of CT_MathPr in schema shared-math_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_MathPr">
    <xsd:sequence>
        <xsd:element name="mathFont" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Math Font</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="brkBin" type="CT_BreakBin" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Break on Binary Operators</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="brkBinSub" type="CT_BreakBinSub" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Break on Binary Subtraction</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="smallFrac" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Small Fraction</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dispDef" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Use Display Math Defaults</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lMargin" type="CT_TwipsMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Left Margin</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="rMargin" type="CT_TwipsMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Right Margin</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="defJc" type="CT_OMathJc" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Default Justification</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="preSp" type="CT_TwipsMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Pre-Equation Spacing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="postSp" type="CT_TwipsMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Post-Equation Spacing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="interSp" type="CT_TwipsMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Inter-Equation Spacing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="intraSp" type="CT_TwipsMeasure" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Intra-Equation Spacing</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0">
            <xsd:element name="wrapIndent" type="CT_TwipsMeasure">
                <xsd:annotation>
                    <xsd:documentation>Wrap Indent</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wrapRight" type="CT_OnOff">
                <xsd:annotation>
                    <xsd:documentation>Wrap Right</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="intLim" type="CT_LimLoc" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Integral Limit Locations</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="naryLim" type="CT_LimLoc" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>n-ary Limit Location</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
mathFont m:mathFont 0 (1)
brkBin m:brkBin 0 (1)
brkBinSub m:brkBinSub 0 (1)
smallFrac m:smallFrac 0 (1)
dispDef m:dispDef 0 (1)
lMargin m:lMargin 0 (1)
rMargin m:rMargin 0 (1)
defJc m:defJc 0 (1)
preSp m:preSp 0 (1)
postSp m:postSp 0 (1)
interSp m:interSp 0 (1)
intraSp m:intraSp 0 (1)
wrapIndent m:wrapIndent (1) (1)
wrapRight m:wrapRight (1) (1)
intLim m:intLim 0 (1)
naryLim m:naryLim 0 (1)
Collapse Derivation Tree:
Collapse References:
m:mathPr
