Definition Type: ComplexType
Name: CT_Mdx
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheetMetadata.xsd
Abstract

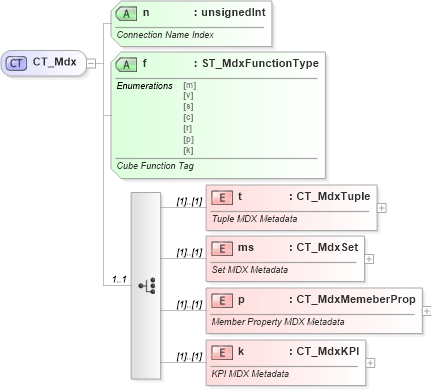

Collapse XSD Schema Diagram:
Drilldown into k in schema sml-sheetmetadata_xsd Drilldown into p in schema sml-sheetmetadata_xsd Drilldown into ms in schema sml-sheetmetadata_xsd Drilldown into t in schema sml-sheetmetadata_xsd Drilldown into f in schema sml-sheetmetadata_xsd Drilldown into n in schema sml-sheetmetadata_xsdXSD Diagram of CT_Mdx in schema sml-sheetmetadata_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Mdx">
    <xsd:choice minOccurs="1" maxOccurs="1">
        <xsd:element name="t" type="CT_MdxTuple">
            <xsd:annotation>
                <xsd:documentation>Tuple MDX Metadata</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ms" type="CT_MdxSet">
            <xsd:annotation>
                <xsd:documentation>Set MDX Metadata</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="p" type="CT_MdxMemeberProp">
            <xsd:annotation>
                <xsd:documentation>Member Property MDX Metadata</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="k" type="CT_MdxKPI">
            <xsd:annotation>
                <xsd:documentation>KPI MDX Metadata</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="n" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Connection Name Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="f" type="ST_MdxFunctionType" use="required">
        <xsd:annotation>
            <xsd:documentation>Cube Function Tag</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
t nsM:t (1) (1)
ms nsM:ms (1) (1)
p nsM:p (1) (1)
k nsM:k (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
n nsM:n Required
f nsM:f Required
Collapse Derivation Tree:
Collapse References:
nsM:mdx
