Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_MdxTuple
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheetMetadata.xsd
Abstract

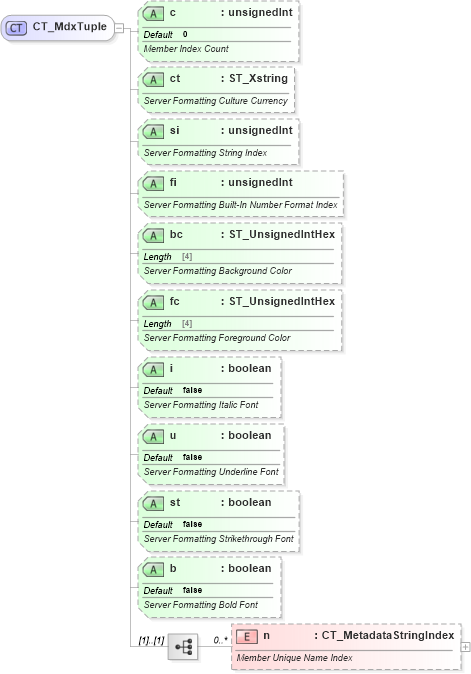

Collapse XSD Schema Diagram:
Drilldown into n in schema sml-sheetmetadata_xsd Drilldown into b in schema sml-sheetmetadata_xsd Drilldown into st in schema sml-sheetmetadata_xsd Drilldown into u in schema sml-sheetmetadata_xsd Drilldown into i in schema sml-sheetmetadata_xsd Drilldown into fc in schema sml-sheetmetadata_xsd Drilldown into bc in schema sml-sheetmetadata_xsd Drilldown into fi in schema sml-sheetmetadata_xsd Drilldown into si in schema sml-sheetmetadata_xsd Drilldown into ct in schema sml-sheetmetadata_xsd Drilldown into c in schema sml-sheetmetadata_xsdXSD Diagram of CT_MdxTuple in schema sml-sheetmetadata_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_MdxTuple">
    <xsd:sequence>
        <xsd:element name="n" type="CT_MetadataStringIndex" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Member Unique Name Index</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="c" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Member Index Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ct" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Culture Currency</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="si" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Server Formatting String Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fi" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Built-In Number Format Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bc" type="ST_UnsignedIntHex" use="optional">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Background Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fc" type="ST_UnsignedIntHex" use="optional">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Foreground Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="i" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Italic Font</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="u" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Underline Font</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="st" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Strikethrough Font</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="b" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Server Formatting Bold Font</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
n nsM:n 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
c nsM:c 0 Optional
ct nsM:ct Optional
si nsM:si Optional
fi nsM:fi Optional
bc nsM:bc Optional
fc nsM:fc Optional
i nsM:i false Optional
u nsM:u false Optional
st nsM:st false Optional
b nsM:b false Optional
Collapse Derivation Tree:
Collapse References:
nsM:t
