Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_MemberProperty
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

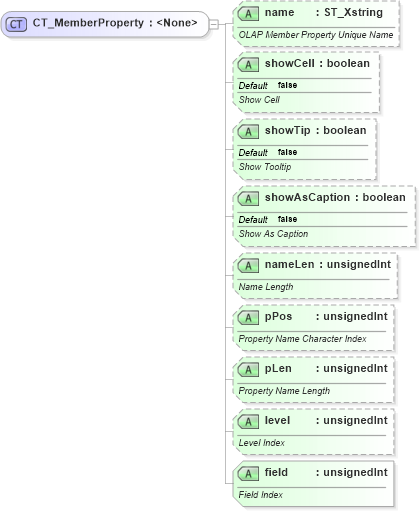

Collapse XSD Schema Diagram:
Drilldown into field in schema sml-pivottable_xsd Drilldown into level in schema sml-pivottable_xsd Drilldown into pLen in schema sml-pivottable_xsd Drilldown into pPos in schema sml-pivottable_xsd Drilldown into nameLen in schema sml-pivottable_xsd Drilldown into showAsCaption in schema sml-pivottable_xsd Drilldown into showTip in schema sml-pivottable_xsd Drilldown into showCell in schema sml-pivottable_xsd Drilldown into name in schema sml-pivottable_xsdXSD Diagram of CT_MemberProperty in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_MemberProperty">
    <xsd:attribute name="name" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>OLAP Member Property Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showCell" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Show Cell</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showTip" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Show Tooltip</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showAsCaption" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Show As Caption</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="nameLen" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Name Length</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="pPos" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Property Name Character Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="pLen" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Property Name Length</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="level" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Level Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="field" use="required" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Field Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Optional
showCell nsM:showCell false Optional
showTip nsM:showTip false Optional
showAsCaption nsM:showAsCaption false Optional
nameLen nsM:nameLen Optional
pPos nsM:pPos Optional
pLen nsM:pLen Optional
level nsM:level Optional
field nsM:field Required
Collapse Derivation Tree:
  • CT_MemberProperty
Collapse References:
nsM:mp
