Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Metadata
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheetMetadata.xsd
Abstract

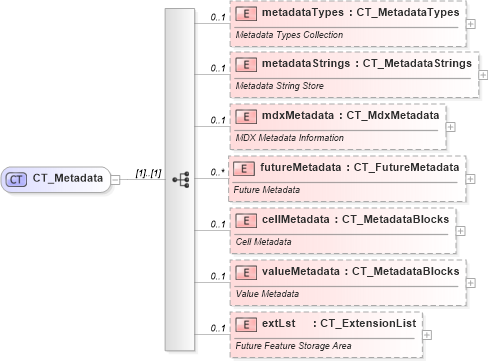

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-sheetmetadata_xsd Drilldown into valueMetadata in schema sml-sheetmetadata_xsd Drilldown into cellMetadata in schema sml-sheetmetadata_xsd Drilldown into futureMetadata in schema sml-sheetmetadata_xsd Drilldown into mdxMetadata in schema sml-sheetmetadata_xsd Drilldown into metadataStrings in schema sml-sheetmetadata_xsd Drilldown into metadataTypes in schema sml-sheetmetadata_xsdXSD Diagram of CT_Metadata in schema sml-sheetmetadata_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Metadata">
    <xsd:sequence>
        <xsd:element name="metadataTypes" type="CT_MetadataTypes" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Metadata Types Collection</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="metadataStrings" type="CT_MetadataStrings" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Metadata String Store</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="mdxMetadata" type="CT_MdxMetadata" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>MDX Metadata Information</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="futureMetadata" type="CT_FutureMetadata" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Future Metadata</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="cellMetadata" type="CT_MetadataBlocks" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Cell Metadata</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="valueMetadata" type="CT_MetadataBlocks" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Value Metadata</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" maxOccurs="1" type="CT_ExtensionList">
            <xsd:annotation>
                <xsd:documentation>Future Feature Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metadataTypes nsM:metadataTypes 0 1
metadataStrings nsM:metadataStrings 0 1
mdxMetadata nsM:mdxMetadata 0 1
futureMetadata nsM:futureMetadata 0 unbounded
cellMetadata nsM:cellMetadata 0 1
valueMetadata nsM:valueMetadata 0 1
extLst nsM:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsM:metadata
