Definition Type: ComplexType
Name: CT_NonVisualConnectorProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-documentProperties.xsd
Abstract
Collapse XSD Schema Diagram:

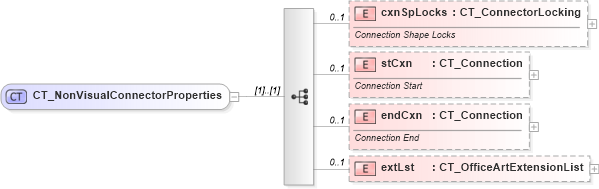

Drilldown into extLst in schema dml-documentproperties_xsd Drilldown into endCxn in schema dml-documentproperties_xsd Drilldown into stCxn in schema dml-documentproperties_xsd Drilldown into cxnSpLocks in schema dml-documentproperties_xsdXSD Diagram of CT_NonVisualConnectorProperties in schema dml-documentproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_NonVisualConnectorProperties">
    <xsd:sequence>
        <xsd:element name="cxnSpLocks" type="CT_ConnectorLocking" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Connection Shape Locks</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="stCxn" type="CT_Connection" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Connection Start</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="endCxn" type="CT_Connection" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Connection End</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cxnSpLocks a:cxnSpLocks 0 1
stCxn a:stCxn 0 1
endCxn a:endCxn 0 1
extLst a:extLst 0 1
Collapse Derivation Tree:
Collapse References:
cdr:cNvCxnSpPr, a:cNvCxnSpPr, nsF:cNvCxnSpPr, p:cNvCxnSpPr
