Definition Type: ComplexType
Name: CT_NumericRule
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Abstract
Collapse XSD Schema Diagram:

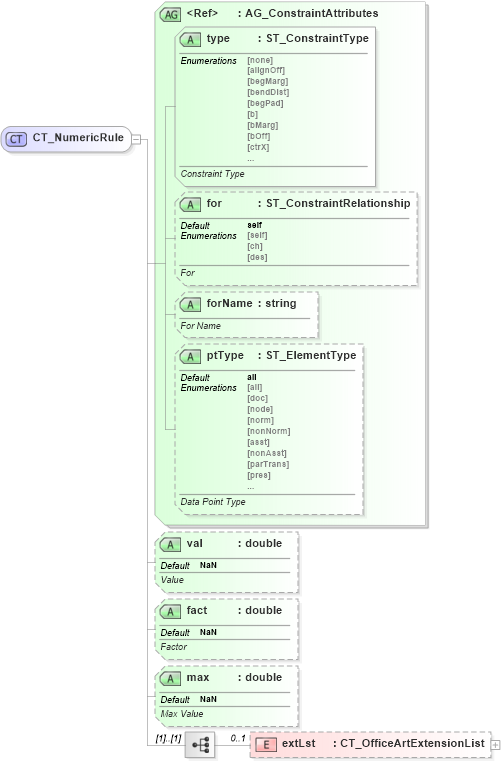

Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into max in schema dml-diagramdefinition_xsd Drilldown into fact in schema dml-diagramdefinition_xsd Drilldown into val in schema dml-diagramdefinition_xsd Drilldown into ptType in schema dml-diagramdefinition_xsd Drilldown into forName in schema dml-diagramdefinition_xsd Drilldown into for in schema dml-diagramdefinition_xsd Drilldown into type in schema dml-diagramdefinition_xsd Drilldown into AG_ConstraintAttributes in schema dml-diagramdefinition_xsdXSD Diagram of CT_NumericRule in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_NumericRule">
    <xsd:sequence>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attributeGroup ref="AG_ConstraintAttributes" />
    <xsd:attribute name="val" type="xsd:double" use="optional" default="NaN">
        <xsd:annotation>
            <xsd:documentation>Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fact" type="xsd:double" use="optional" default="NaN">
        <xsd:annotation>
            <xsd:documentation>Factor</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="max" type="xsd:double" use="optional" default="NaN">
        <xsd:annotation>
            <xsd:documentation>Max Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
type nsC:type Required
for nsC:for self Optional
forName nsC:forName Optional
ptType nsC:ptType all Optional
val nsC:val NaN Optional
fact nsC:fact NaN Optional
max nsC:max NaN Optional
Collapse Derivation Tree:
Collapse References:
nsC:rule
