Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_NumRef
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

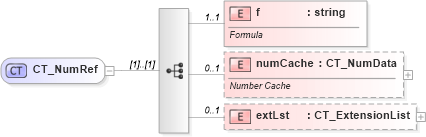

Drilldown into extLst in schema dml-chart_xsd Drilldown into numCache in schema dml-chart_xsd Drilldown into f in schema dml-chart_xsdXSD Diagram of CT_NumRef in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_NumRef">
    <xsd:sequence>
        <xsd:element name="f" type="xsd:string" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Formula</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="numCache" type="CT_NumData" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Number Cache</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
f nsA:f 1 1
numCache nsA:numCache 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:numRef, nsA:numRef
