Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Odso
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

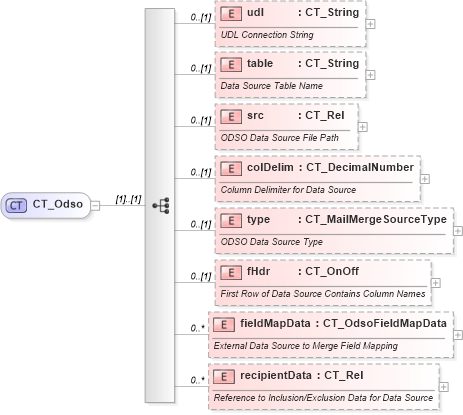

Collapse XSD Schema Diagram:
Drilldown into recipientData in schema wml_xsd Drilldown into fieldMapData in schema wml_xsd Drilldown into fHdr in schema wml_xsd Drilldown into type in schema wml_xsd Drilldown into colDelim in schema wml_xsd Drilldown into src in schema wml_xsd Drilldown into table in schema wml_xsd Drilldown into udl in schema wml_xsdXSD Diagram of CT_Odso in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Odso">
    <xsd:sequence>
        <xsd:element name="udl" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>UDL Connection String</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="table" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Data Source Table Name</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="src" type="CT_Rel" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>ODSO Data Source File Path</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="colDelim" type="CT_DecimalNumber" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Column Delimiter for Data Source</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="type" type="CT_MailMergeSourceType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>ODSO Data Source Type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fHdr" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>First Row of Data Source Contains Column Names</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fieldMapData" type="CT_OdsoFieldMapData" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>External Data Source to Merge Field Mapping</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="recipientData" type="CT_Rel" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Reference to Inclusion/Exclusion Data for Data Source</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
udl w:udl 0 (1)
table w:table 0 (1)
src w:src 0 (1)
colDelim w:colDelim 0 (1)
type w:type 0 (1)
fHdr w:fHdr 0 (1)
fieldMapData w:fieldMapData 0 unbounded
recipientData w:recipientData 0 unbounded
Collapse Derivation Tree:
Collapse References:
w:odso
