Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_OfficeArtExtension
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract
Collapse XSD Schema Diagram:

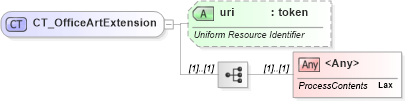

Drilldown into uri in schema dml-basetypes_xsdXSD Diagram of CT_OfficeArtExtension in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_OfficeArtExtension">
    <xsd:sequence>
        <xsd:any processContents="lax" />
    </xsd:sequence>
    <xsd:attribute name="uri" type="xsd:token">
        <xsd:annotation>
            <xsd:documentation>Uniform Resource Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
uri a:uri (Optional)
Collapse Derivation Tree:
  • CT_OfficeArtExtension
Collapse References:
a:ext
