Definition Type: ComplexType
Name: CT_OfPieChart
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

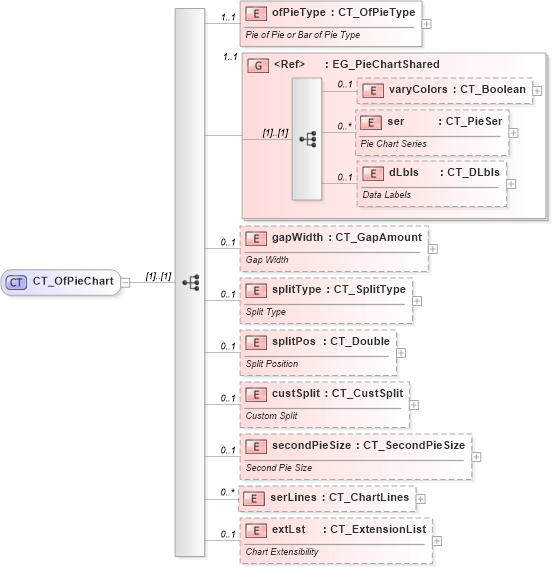

Drilldown into extLst in schema dml-chart_xsd Drilldown into serLines in schema dml-chart_xsd Drilldown into secondPieSize in schema dml-chart_xsd Drilldown into custSplit in schema dml-chart_xsd Drilldown into splitPos in schema dml-chart_xsd Drilldown into splitType in schema dml-chart_xsd Drilldown into gapWidth in schema dml-chart_xsd Drilldown into dLbls in schema dml-chart_xsd Drilldown into ser in schema dml-chart_xsd Drilldown into varyColors in schema dml-chart_xsd Drilldown into EG_PieChartShared in schema dml-chart_xsd Drilldown into ofPieType in schema dml-chart_xsdXSD Diagram of CT_OfPieChart in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_OfPieChart">
    <xsd:sequence>
        <xsd:element name="ofPieType" type="CT_OfPieType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Pie of Pie or Bar of Pie Type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="EG_PieChartShared" minOccurs="1" maxOccurs="1" />
        <xsd:element name="gapWidth" type="CT_GapAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gap Width</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="splitType" type="CT_SplitType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Split Type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="splitPos" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Split Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="custSplit" type="CT_CustSplit" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Custom Split</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="secondPieSize" type="CT_SecondPieSize" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Second Pie Size</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="serLines" type="CT_ChartLines" minOccurs="0" maxOccurs="unbounded">
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ofPieType nsA:ofPieType 1 1
varyColors nsA:varyColors 0 1
ser nsA:ser 0 unbounded
dLbls nsA:dLbls 0 1
gapWidth nsA:gapWidth 0 1
splitType nsA:splitType 0 1
splitPos nsA:splitPos 0 1
custSplit nsA:custSplit 0 1
secondPieSize nsA:secondPieSize 0 1
serLines nsA:serLines 0 unbounded
extLst nsA:extLst 0 1
<xs:group> nsA:EG_PieChartShared 1 1
