Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_OlapPr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-externalConnections.xsd
Abstract

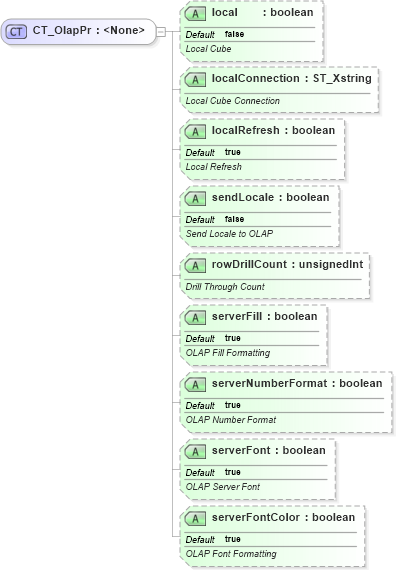

Collapse XSD Schema Diagram:
Drilldown into serverFontColor in schema sml-externalconnections_xsd Drilldown into serverFont in schema sml-externalconnections_xsd Drilldown into serverNumberFormat in schema sml-externalconnections_xsd Drilldown into serverFill in schema sml-externalconnections_xsd Drilldown into rowDrillCount in schema sml-externalconnections_xsd Drilldown into sendLocale in schema sml-externalconnections_xsd Drilldown into localRefresh in schema sml-externalconnections_xsd Drilldown into localConnection in schema sml-externalconnections_xsd Drilldown into local in schema sml-externalconnections_xsdXSD Diagram of CT_OlapPr in schema sml-externalconnections_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_OlapPr">
    <xsd:attribute name="local" use="optional" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Local Cube</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="localConnection" use="optional" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Local Cube Connection</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="localRefresh" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Local Refresh</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sendLocale" use="optional" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Send Locale to OLAP</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rowDrillCount" use="optional" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Drill Through Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="serverFill" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>OLAP Fill Formatting</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="serverNumberFormat" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>OLAP Number Format</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="serverFont" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>OLAP Server Font</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="serverFontColor" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>OLAP Font Formatting</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
local nsM:local false Optional
localConnection nsM:localConnection Optional
localRefresh nsM:localRefresh true Optional
sendLocale nsM:sendLocale false Optional
rowDrillCount nsM:rowDrillCount Optional
serverFill nsM:serverFill true Optional
serverNumberFormat nsM:serverNumberFormat true Optional
serverFont nsM:serverFont true Optional
serverFontColor nsM:serverFontColor true Optional
Collapse Derivation Tree:
Collapse References:
nsM:olapPr
