Definition Type: ComplexType
Name: CT_OLEObject
Namespace: urn:schemas-microsoft-com:office:office
Containing Schema: vml-officeDrawing.xsd
Abstract

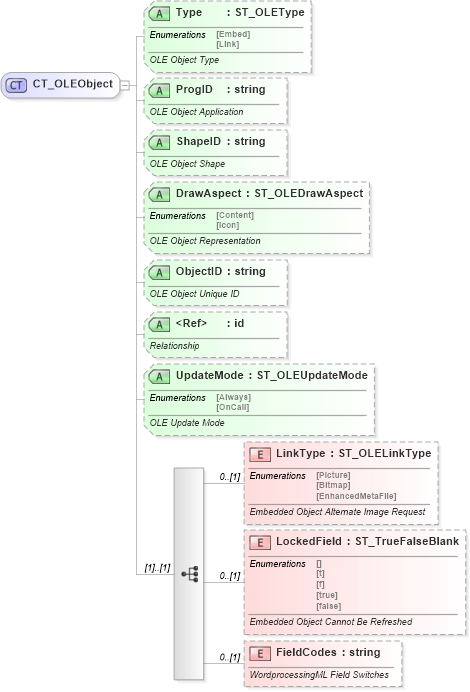

Collapse XSD Schema Diagram:
Drilldown into FieldCodes in schema vml-officedrawing_xsd Drilldown into LockedField in schema vml-officedrawing_xsd Drilldown into LinkType in schema vml-officedrawing_xsd Drilldown into UpdateMode in schema vml-officedrawing_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into ObjectID in schema vml-officedrawing_xsd Drilldown into DrawAspect in schema vml-officedrawing_xsd Drilldown into ShapeID in schema vml-officedrawing_xsd Drilldown into ProgID in schema vml-officedrawing_xsd Drilldown into Type in schema vml-officedrawing_xsdXSD Diagram of CT_OLEObject in schema vml-officedrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_OLEObject">
    <xsd:sequence>
        <xsd:element name="LinkType" type="ST_OLELinkType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Embedded Object Alternate Image Request</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LockedField" type="ST_TrueFalseBlank" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Embedded Object Cannot Be Refreshed</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FieldCodes" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>WordprocessingML Field Switches</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="Type" type="ST_OLEType" use="optional">
        <xsd:annotation>
            <xsd:documentation>OLE Object Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ProgID" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>OLE Object Application</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ShapeID" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>OLE Object Shape</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="DrawAspect" type="ST_OLEDrawAspect" use="optional">
        <xsd:annotation>
            <xsd:documentation>OLE Object Representation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ObjectID" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>OLE Object Unique ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:id" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relationship</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="UpdateMode" type="ST_OLEUpdateMode" use="optional">
        <xsd:annotation>
            <xsd:documentation>OLE Update Mode</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LinkType o:LinkType 0 (1)
LockedField o:LockedField 0 (1)
FieldCodes o:FieldCodes 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Type o:Type Optional
ProgID o:ProgID Optional
ShapeID o:ShapeID Optional
DrawAspect o:DrawAspect Optional
ObjectID o:ObjectID Optional
id r:id Optional
UpdateMode o:UpdateMode Optional
Collapse Derivation Tree:
Collapse References:
o:OLEObject
