Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PageField
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

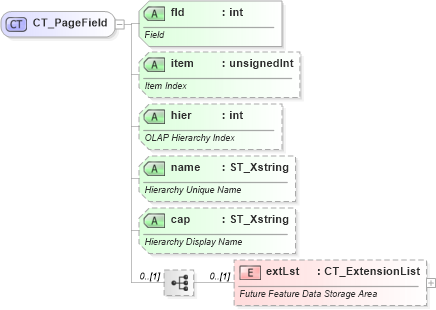

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into cap in schema sml-pivottable_xsd Drilldown into name in schema sml-pivottable_xsd Drilldown into hier in schema sml-pivottable_xsd Drilldown into item in schema sml-pivottable_xsd Drilldown into fld in schema sml-pivottable_xsdXSD Diagram of CT_PageField in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PageField">
    <xsd:sequence minOccurs="0">
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="fld" use="required" type="xsd:int">
        <xsd:annotation>
            <xsd:documentation>Field</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="item" use="optional" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Item Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hier" type="xsd:int">
        <xsd:annotation>
            <xsd:documentation>OLAP Hierarchy Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="name" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Hierarchy Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="cap" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Hierarchy Display Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
fld nsM:fld Required
item nsM:item Optional
hier nsM:hier (Optional)
name nsM:name (Optional)
cap nsM:cap (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:pageField
