Definition Type: ComplexType
Name: CT_PatternFill
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-styles.xsd
Abstract

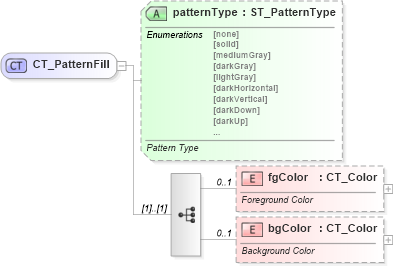

Collapse XSD Schema Diagram:
Drilldown into bgColor in schema sml-styles_xsd Drilldown into fgColor in schema sml-styles_xsd Drilldown into patternType in schema sml-styles_xsdXSD Diagram of CT_PatternFill in schema sml-styles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PatternFill">
    <xsd:sequence>
        <xsd:element name="fgColor" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Foreground Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bgColor" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Background Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="patternType" type="ST_PatternType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Pattern Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fgColor nsM:fgColor 0 1
bgColor nsM:bgColor 0 1
Collapse Child Attributes:
Name Type Default Value Use
patternType nsM:patternType Optional
Collapse Derivation Tree:
Collapse References:
nsM:patternFill
