Definition Type: ComplexType
Name: CT_PatternFillProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd
Abstract
Collapse XSD Schema Diagram:

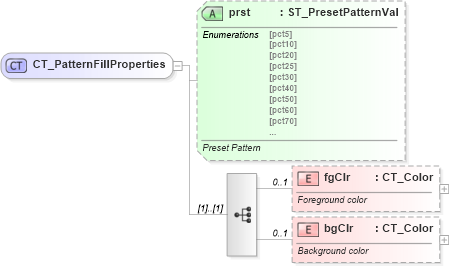

Drilldown into bgClr in schema dml-shapeeffects_xsd Drilldown into fgClr in schema dml-shapeeffects_xsd Drilldown into prst in schema dml-shapeeffects_xsdXSD Diagram of CT_PatternFillProperties in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PatternFillProperties">
    <xsd:sequence>
        <xsd:element name="fgClr" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Foreground color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bgClr" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Background color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="prst" type="ST_PresetPatternVal" use="optional">
        <xsd:annotation>
            <xsd:documentation>Preset Pattern</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fgClr a:fgClr 0 1
bgClr a:bgClr 0 1
Collapse Child Attributes:
Name Type Default Value Use
prst a:prst Optional
Collapse Derivation Tree:
Collapse References:
a:pattFill, a:pattFill
