Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PCDKPI
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

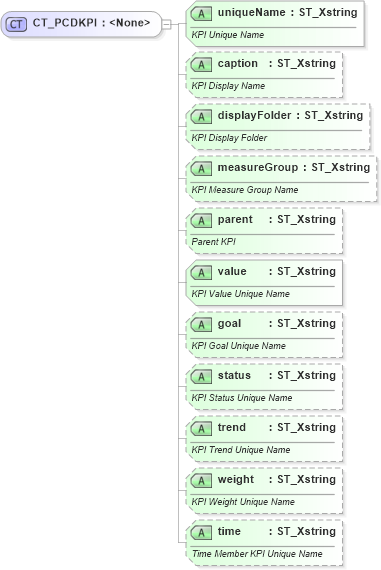

Collapse XSD Schema Diagram:
Drilldown into time in schema sml-pivottable_xsd Drilldown into weight in schema sml-pivottable_xsd Drilldown into trend in schema sml-pivottable_xsd Drilldown into status in schema sml-pivottable_xsd Drilldown into goal in schema sml-pivottable_xsd Drilldown into value in schema sml-pivottable_xsd Drilldown into parent in schema sml-pivottable_xsd Drilldown into measureGroup in schema sml-pivottable_xsd Drilldown into displayFolder in schema sml-pivottable_xsd Drilldown into caption in schema sml-pivottable_xsd Drilldown into uniqueName in schema sml-pivottable_xsdXSD Diagram of CT_PCDKPI in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PCDKPI">
    <xsd:attribute name="uniqueName" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="caption" use="optional" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Display Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="displayFolder" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Display Folder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="measureGroup" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Measure Group Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="parent" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Parent KPI</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="value" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Value Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="goal" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Goal Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="status" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Status Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="trend" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Trend Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="weight" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>KPI Weight Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="time" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Time Member KPI Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
uniqueName nsM:uniqueName Required
caption nsM:caption Optional
displayFolder nsM:displayFolder (Optional)
measureGroup nsM:measureGroup (Optional)
parent nsM:parent (Optional)
value nsM:value Required
goal nsM:goal (Optional)
status nsM:status (Optional)
trend nsM:trend (Optional)
weight nsM:weight (Optional)
time nsM:time (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:kpi
