Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PictureLocking
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-documentProperties.xsd
Abstract

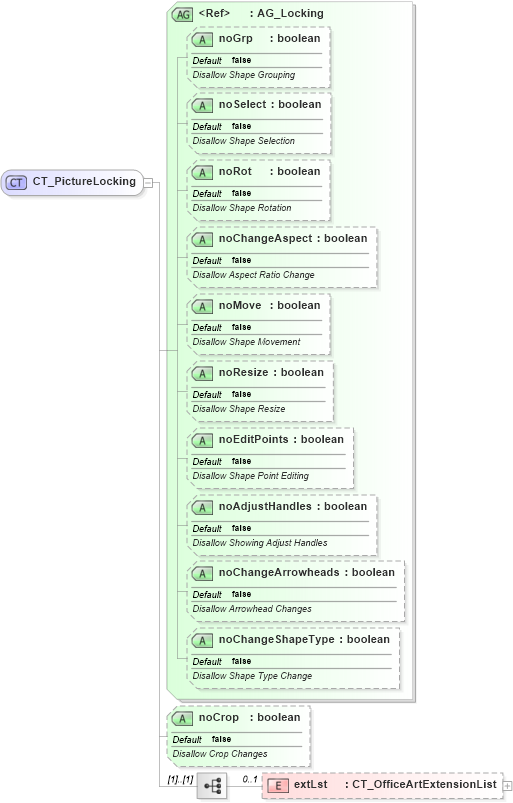

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-documentproperties_xsd Drilldown into noCrop in schema dml-documentproperties_xsd Drilldown into noChangeShapeType in schema dml-documentproperties_xsd Drilldown into noChangeArrowheads in schema dml-documentproperties_xsd Drilldown into noAdjustHandles in schema dml-documentproperties_xsd Drilldown into noEditPoints in schema dml-documentproperties_xsd Drilldown into noResize in schema dml-documentproperties_xsd Drilldown into noMove in schema dml-documentproperties_xsd Drilldown into noChangeAspect in schema dml-documentproperties_xsd Drilldown into noRot in schema dml-documentproperties_xsd Drilldown into noSelect in schema dml-documentproperties_xsd Drilldown into noGrp in schema dml-documentproperties_xsd Drilldown into AG_Locking in schema dml-documentproperties_xsdXSD Diagram of CT_PictureLocking in schema dml-documentproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PictureLocking">
    <xsd:sequence>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attributeGroup ref="AG_Locking" />
    <xsd:attribute name="noCrop" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Disallow Crop Changes</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
noGrp a:noGrp false Optional
noSelect a:noSelect false Optional
noRot a:noRot false Optional
noChangeAspect a:noChangeAspect false Optional
noMove a:noMove false Optional
noResize a:noResize false Optional
noEditPoints a:noEditPoints false Optional
noAdjustHandles a:noAdjustHandles false Optional
noChangeArrowheads a:noChangeArrowheads false Optional
noChangeShapeType a:noChangeShapeType false Optional
noCrop a:noCrop false Optional
Collapse Derivation Tree:
Collapse References:
a:picLocks
