Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PivotDimension
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract
Collapse XSD Schema Diagram:

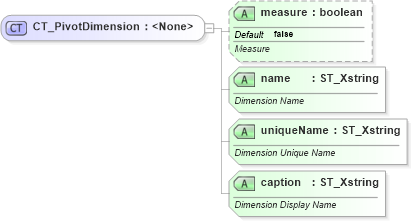

Drilldown into caption in schema sml-pivottable_xsd Drilldown into uniqueName in schema sml-pivottable_xsd Drilldown into name in schema sml-pivottable_xsd Drilldown into measure in schema sml-pivottable_xsdXSD Diagram of CT_PivotDimension in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PivotDimension">
    <xsd:attribute name="measure" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Measure</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="name" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Dimension Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="uniqueName" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Dimension Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="caption" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Dimension Display Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
measure nsM:measure false (Optional)
name nsM:name Required
uniqueName nsM:uniqueName Required
caption nsM:caption Required
Collapse Derivation Tree:
Collapse References:
nsM:dimension
