Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PivotFmt
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

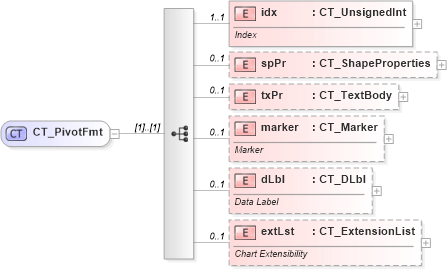

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into dLbl in schema dml-chart_xsd Drilldown into marker in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into idx in schema dml-chart_xsdXSD Diagram of CT_PivotFmt in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PivotFmt">
    <xsd:sequence>
        <xsd:element name="idx" type="CT_UnsignedInt" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Index</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="txPr" type="a:CT_TextBody" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="marker" type="CT_Marker" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Marker</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dLbl" type="CT_DLbl" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Data Label</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idx nsA:idx 1 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
marker nsA:marker 0 1
dLbl nsA:dLbl 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:pivotFmt
