Definition Type: ComplexType
Name: CT_PivotSelection
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract

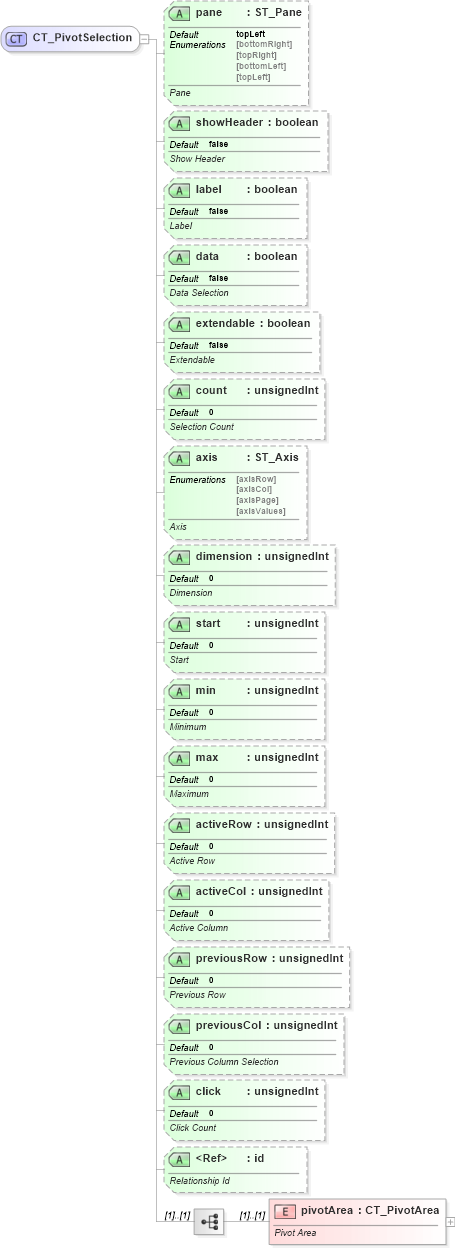

Collapse XSD Schema Diagram:
Drilldown into pivotArea in schema sml-sheet_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into click in schema sml-sheet_xsd Drilldown into previousCol in schema sml-sheet_xsd Drilldown into previousRow in schema sml-sheet_xsd Drilldown into activeCol in schema sml-sheet_xsd Drilldown into activeRow in schema sml-sheet_xsd Drilldown into max in schema sml-sheet_xsd Drilldown into min in schema sml-sheet_xsd Drilldown into start in schema sml-sheet_xsd Drilldown into dimension in schema sml-sheet_xsd Drilldown into axis in schema sml-sheet_xsd Drilldown into count in schema sml-sheet_xsd Drilldown into extendable in schema sml-sheet_xsd Drilldown into data in schema sml-sheet_xsd Drilldown into label in schema sml-sheet_xsd Drilldown into showHeader in schema sml-sheet_xsd Drilldown into pane in schema sml-sheet_xsdXSD Diagram of CT_PivotSelection in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PivotSelection">
    <xsd:sequence>
        <xsd:element name="pivotArea" type="CT_PivotArea">
            <xsd:annotation>
                <xsd:documentation>Pivot Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="pane" type="ST_Pane" use="optional" default="topLeft">
        <xsd:annotation>
            <xsd:documentation>Pane</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showHeader" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Show Header</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="label" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Label</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="data" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Data Selection</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="extendable" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Extendable</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="count" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Selection Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="axis" type="ST_Axis" use="optional">
        <xsd:annotation>
            <xsd:documentation>Axis</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dimension" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Dimension</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="start" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Start</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="min" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Minimum</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="max" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Maximum</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="activeRow" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Active Row</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="activeCol" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Active Column</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="previousRow" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Previous Row</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="previousCol" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Previous Column Selection</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="click" type="xsd:unsignedInt" default="0">
        <xsd:annotation>
            <xsd:documentation>Click Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:id" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relationship Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pivotArea nsM:pivotArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
pane nsM:pane topLeft Optional
showHeader nsM:showHeader false (Optional)
label nsM:label false (Optional)
data nsM:data false (Optional)
extendable nsM:extendable false (Optional)
count nsM:count 0 (Optional)
axis nsM:axis Optional
dimension nsM:dimension 0 (Optional)
start nsM:start 0 (Optional)
min nsM:min 0 (Optional)
max nsM:max 0 (Optional)
activeRow nsM:activeRow 0 (Optional)
activeCol nsM:activeCol 0 (Optional)
previousRow nsM:previousRow 0 (Optional)
previousCol nsM:previousCol 0 (Optional)
click nsM:click 0 (Optional)
id r:id Optional
Collapse Derivation Tree:
Collapse References:
nsM:pivotSelection
