Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Point2D
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract
Collapse XSD Schema Diagram:

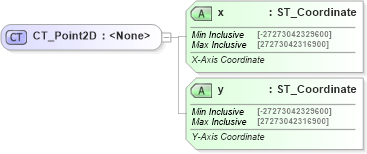

Drilldown into y in schema dml-basetypes_xsd Drilldown into x in schema dml-basetypes_xsdXSD Diagram of CT_Point2D in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Point2D">
    <xsd:attribute name="x" type="ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>X-Axis Coordinate</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="y" type="ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Y-Axis Coordinate</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
x a:x Required
y a:y Required
Collapse Derivation Tree:
Collapse References:
a:chOff, wp:lineTo, a:off, a:off, p:originnsF:pos, p:pos, wp:simplePos, wp:start,
