Definition Type: ComplexType
Name: CT_Point3D
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract
Collapse XSD Schema Diagram:

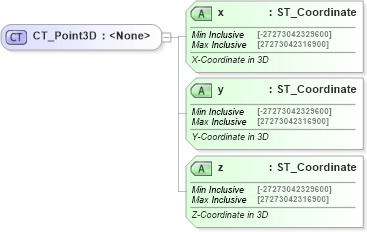

Drilldown into z in schema dml-basetypes_xsd Drilldown into y in schema dml-basetypes_xsd Drilldown into x in schema dml-basetypes_xsdXSD Diagram of CT_Point3D in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Point3D">
    <xsd:attribute name="x" type="ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>X-Coordinate in 3D</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="y" type="ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Y-Coordinate in 3D</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="z" type="ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Z-Coordinate in 3D</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
x a:x Required
y a:y Required
z a:z Required
Collapse Derivation Tree:
Collapse References:
a:anchor
