Definition Type: ComplexType
Name: CT_PolarAdjustHandle
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeGeometry.xsd
Abstract

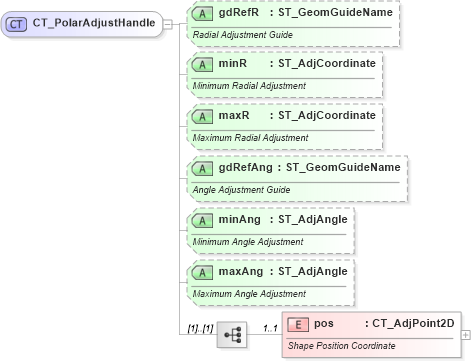

Collapse XSD Schema Diagram:
Drilldown into pos in schema dml-shapegeometry_xsd Drilldown into maxAng in schema dml-shapegeometry_xsd Drilldown into minAng in schema dml-shapegeometry_xsd Drilldown into gdRefAng in schema dml-shapegeometry_xsd Drilldown into maxR in schema dml-shapegeometry_xsd Drilldown into minR in schema dml-shapegeometry_xsd Drilldown into gdRefR in schema dml-shapegeometry_xsdXSD Diagram of CT_PolarAdjustHandle in schema dml-shapegeometry_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PolarAdjustHandle">
    <xsd:sequence>
        <xsd:element name="pos" type="CT_AdjPoint2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Position Coordinate</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="gdRefR" type="ST_GeomGuideName" use="optional">
        <xsd:annotation>
            <xsd:documentation>Radial Adjustment Guide</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minR" type="ST_AdjCoordinate" use="optional">
        <xsd:annotation>
            <xsd:documentation>Minimum Radial Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="maxR" type="ST_AdjCoordinate" use="optional">
        <xsd:annotation>
            <xsd:documentation>Maximum Radial Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="gdRefAng" type="ST_GeomGuideName" use="optional">
        <xsd:annotation>
            <xsd:documentation>Angle Adjustment Guide</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minAng" type="ST_AdjAngle" use="optional">
        <xsd:annotation>
            <xsd:documentation>Minimum Angle Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="maxAng" type="ST_AdjAngle" use="optional">
        <xsd:annotation>
            <xsd:documentation>Maximum Angle Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos a:pos 1 1
Collapse Child Attributes:
Name Type Default Value Use
gdRefR a:gdRefR Optional
minR a:minR Optional
maxR a:maxR Optional
gdRefAng a:gdRefAng Optional
minAng a:minAng Optional
maxAng a:maxAng Optional
Collapse Derivation Tree:
Collapse References:
a:ahPolar
