Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PosH
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Containing Schema: dml-wordprocessingDrawing.xsd
Abstract

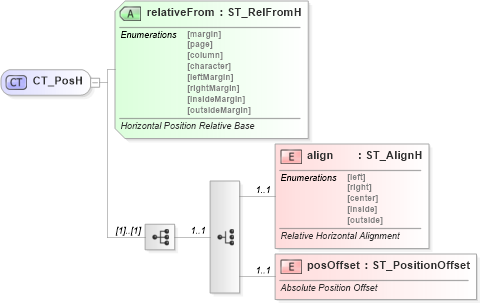

Collapse XSD Schema Diagram:
Drilldown into posOffset in schema dml-wordprocessingdrawing_xsd Drilldown into align in schema dml-wordprocessingdrawing_xsd Drilldown into relativeFrom in schema dml-wordprocessingdrawing_xsdXSD Diagram of CT_PosH in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PosH">
    <xsd:sequence>
        <xsd:choice minOccurs="1" maxOccurs="1">
            <xsd:element name="align" type="ST_AlignH" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Relative Horizontal Alignment</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="posOffset" type="ST_PositionOffset" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Absolute Position Offset</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
    <xsd:attribute name="relativeFrom" type="ST_RelFromH" use="required">
        <xsd:annotation>
            <xsd:documentation>Horizontal Position Relative Base</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
align wp:align 1 1
posOffset wp:posOffset 1 1
Collapse Child Attributes:
Name Type Default Value Use
relativeFrom wp:relativeFrom Required
Collapse Derivation Tree:
Collapse References:
wp:positionH
