Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Presentation
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-presentation.xsd
Abstract

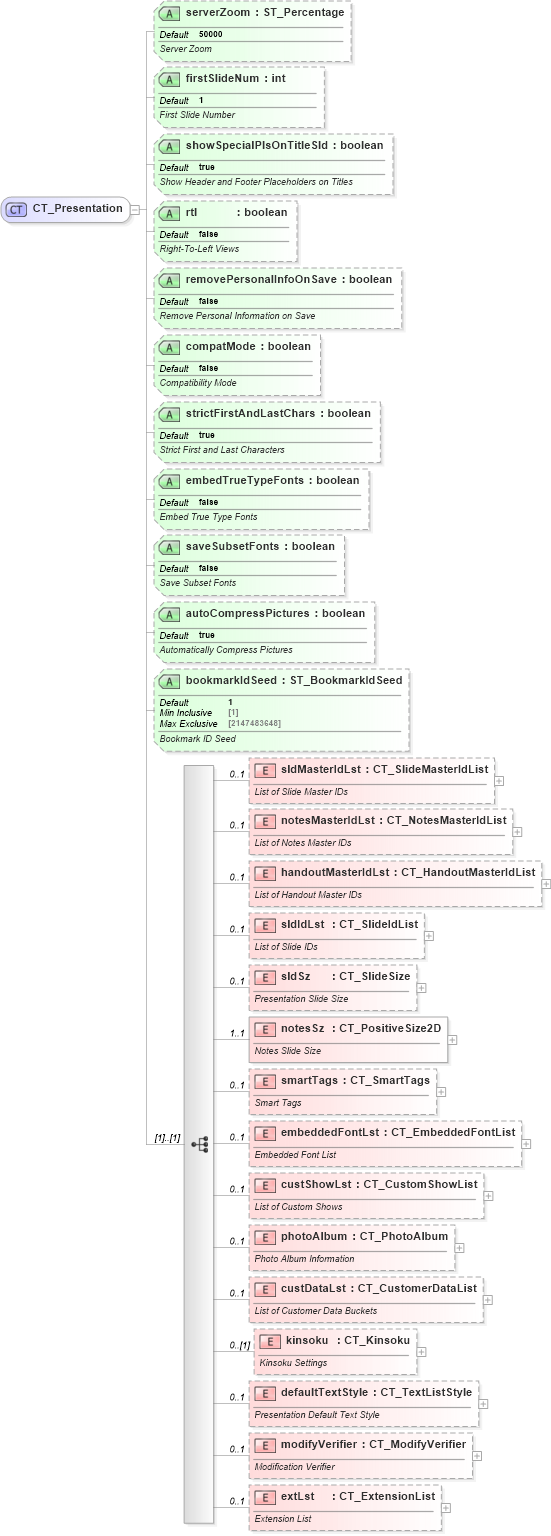

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-presentation_xsd Drilldown into modifyVerifier in schema pml-presentation_xsd Drilldown into defaultTextStyle in schema pml-presentation_xsd Drilldown into kinsoku in schema pml-presentation_xsd Drilldown into custDataLst in schema pml-presentation_xsd Drilldown into photoAlbum in schema pml-presentation_xsd Drilldown into custShowLst in schema pml-presentation_xsd Drilldown into embeddedFontLst in schema pml-presentation_xsd Drilldown into smartTags in schema pml-presentation_xsd Drilldown into notesSz in schema pml-presentation_xsd Drilldown into sldSz in schema pml-presentation_xsd Drilldown into sldIdLst in schema pml-presentation_xsd Drilldown into handoutMasterIdLst in schema pml-presentation_xsd Drilldown into notesMasterIdLst in schema pml-presentation_xsd Drilldown into sldMasterIdLst in schema pml-presentation_xsd Drilldown into bookmarkIdSeed in schema pml-presentation_xsd Drilldown into autoCompressPictures in schema pml-presentation_xsd Drilldown into saveSubsetFonts in schema pml-presentation_xsd Drilldown into embedTrueTypeFonts in schema pml-presentation_xsd Drilldown into strictFirstAndLastChars in schema pml-presentation_xsd Drilldown into compatMode in schema pml-presentation_xsd Drilldown into removePersonalInfoOnSave in schema pml-presentation_xsd Drilldown into rtl in schema pml-presentation_xsd Drilldown into showSpecialPlsOnTitleSld in schema pml-presentation_xsd Drilldown into firstSlideNum in schema pml-presentation_xsd Drilldown into serverZoom in schema pml-presentation_xsdXSD Diagram of CT_Presentation in schema pml-presentation_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Presentation">
    <xsd:sequence>
        <xsd:element name="sldMasterIdLst" type="CT_SlideMasterIdList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of Slide Master IDs</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="notesMasterIdLst" type="CT_NotesMasterIdList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of Notes Master IDs</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="handoutMasterIdLst" type="CT_HandoutMasterIdList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of Handout Master IDs</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sldIdLst" type="CT_SlideIdList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of Slide IDs</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sldSz" type="CT_SlideSize" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Presentation Slide Size</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="notesSz" type="a:CT_PositiveSize2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Notes Slide Size</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="smartTags" type="CT_SmartTags" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Smart Tags</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="embeddedFontLst" type="CT_EmbeddedFontList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Embedded Font List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="custShowLst" type="CT_CustomShowList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of Custom Shows</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="photoAlbum" type="CT_PhotoAlbum" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Photo Album Information</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="custDataLst" type="CT_CustomerDataList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of Customer Data Buckets</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="kinsoku" type="CT_Kinsoku" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Kinsoku Settings</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="defaultTextStyle" type="a:CT_TextListStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Presentation Default Text Style</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="modifyVerifier" type="CT_ModifyVerifier" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Modification Verifier</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Extension List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="serverZoom" type="a:ST_Percentage" use="optional" default="50000">
        <xsd:annotation>
            <xsd:documentation>Server Zoom</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="firstSlideNum" type="xsd:int" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>First Slide Number</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showSpecialPlsOnTitleSld" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Header and Footer Placeholders on Titles</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rtl" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Right-To-Left Views</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="removePersonalInfoOnSave" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Remove Personal Information on Save</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="compatMode" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Compatibility Mode</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="strictFirstAndLastChars" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Strict First and Last Characters</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="embedTrueTypeFonts" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Embed True Type Fonts</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="saveSubsetFonts" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Save Subset Fonts</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="autoCompressPictures" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Automatically Compress Pictures</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bookmarkIdSeed" type="ST_BookmarkIdSeed" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>Bookmark ID Seed</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sldMasterIdLst p:sldMasterIdLst 0 1
notesMasterIdLst p:notesMasterIdLst 0 1
handoutMasterIdLst p:handoutMasterIdLst 0 1
sldIdLst p:sldIdLst 0 1
sldSz p:sldSz 0 1
notesSz p:notesSz 1 1
smartTags p:smartTags 0 1
embeddedFontLst p:embeddedFontLst 0 1
custShowLst p:custShowLst 0 1
photoAlbum p:photoAlbum 0 1
custDataLst p:custDataLst 0 1
kinsoku p:kinsoku 0 (1)
defaultTextStyle p:defaultTextStyle 0 1
modifyVerifier p:modifyVerifier 0 1
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
serverZoom p:serverZoom 50000 Optional
firstSlideNum p:firstSlideNum 1 Optional
showSpecialPlsOnTitleSld p:showSpecialPlsOnTitleSld true Optional
rtl p:rtl false Optional
removePersonalInfoOnSave p:removePersonalInfoOnSave false Optional
compatMode p:compatMode false Optional
strictFirstAndLastChars p:strictFirstAndLastChars true Optional
embedTrueTypeFonts p:embedTrueTypeFonts false Optional
saveSubsetFonts p:saveSubsetFonts false Optional
autoCompressPictures p:autoCompressPictures true Optional
bookmarkIdSeed p:bookmarkIdSeed 1 Optional
Collapse Derivation Tree:
Collapse References:
p:presentation
