Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PrintSettings
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

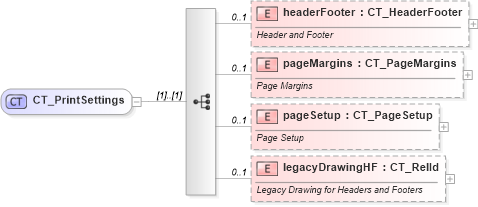

Drilldown into legacyDrawingHF in schema dml-chart_xsd Drilldown into pageSetup in schema dml-chart_xsd Drilldown into pageMargins in schema dml-chart_xsd Drilldown into headerFooter in schema dml-chart_xsdXSD Diagram of CT_PrintSettings in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PrintSettings">
    <xsd:sequence>
        <xsd:element name="headerFooter" type="CT_HeaderFooter" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Header and Footer</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pageMargins" type="CT_PageMargins" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Page Margins</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pageSetup" type="CT_PageSetup" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Page Setup</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="legacyDrawingHF" type="CT_RelId" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Legacy Drawing for Headers and Footers</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
headerFooter nsA:headerFooter 0 1
pageMargins nsA:pageMargins 0 1
pageSetup nsA:pageSetup 0 1
legacyDrawingHF nsA:legacyDrawingHF 0 1
Collapse Derivation Tree:
Collapse References:
nsA:printSettings
