Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Protection
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

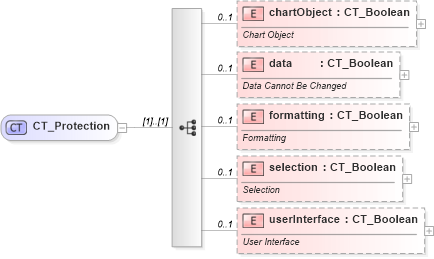

Collapse XSD Schema Diagram:
Drilldown into userInterface in schema dml-chart_xsd Drilldown into selection in schema dml-chart_xsd Drilldown into formatting in schema dml-chart_xsd Drilldown into data in schema dml-chart_xsd Drilldown into chartObject in schema dml-chart_xsdXSD Diagram of CT_Protection in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Protection">
    <xsd:sequence>
        <xsd:element name="chartObject" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Object</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="data" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Data Cannot Be Changed</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="formatting" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Formatting</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="selection" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Selection</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="userInterface" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>User Interface</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
chartObject nsA:chartObject 0 1
data nsA:data 0 1
formatting nsA:formatting 0 1
selection nsA:selection 0 1
userInterface nsA:userInterface 0 1
Collapse Derivation Tree:
Collapse References:
nsA:protection
