Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Proxy
Namespace: urn:schemas-microsoft-com:office:office
Containing Schema: vml-officeDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

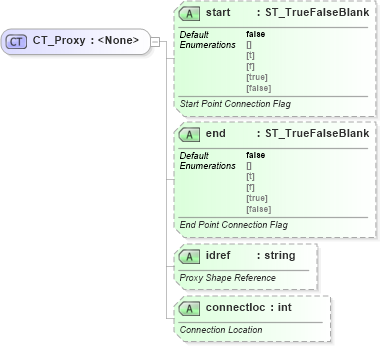

Drilldown into connectloc in schema vml-officedrawing_xsd Drilldown into idref in schema vml-officedrawing_xsd Drilldown into end in schema vml-officedrawing_xsd Drilldown into start in schema vml-officedrawing_xsdXSD Diagram of CT_Proxy in schema vml-officedrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Proxy">
    <xsd:attribute name="start" type="ST_TrueFalseBlank" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Start Point Connection Flag</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="end" type="ST_TrueFalseBlank" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>End Point Connection Flag</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="idref" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Proxy Shape Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="connectloc" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Connection Location</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
start o:start false Optional
end o:end false Optional
idref o:idref Optional
connectloc o:connectloc Optional
Collapse Derivation Tree:
Collapse References:
o:proxy
