Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_RangePr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

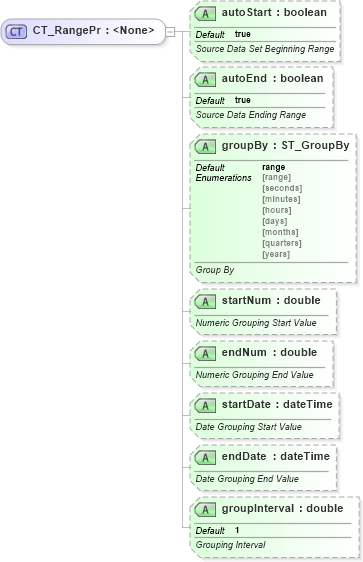

Collapse XSD Schema Diagram:
Drilldown into groupInterval in schema sml-pivottable_xsd Drilldown into endDate in schema sml-pivottable_xsd Drilldown into startDate in schema sml-pivottable_xsd Drilldown into endNum in schema sml-pivottable_xsd Drilldown into startNum in schema sml-pivottable_xsd Drilldown into groupBy in schema sml-pivottable_xsd Drilldown into autoEnd in schema sml-pivottable_xsd Drilldown into autoStart in schema sml-pivottable_xsdXSD Diagram of CT_RangePr in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_RangePr">
    <xsd:attribute name="autoStart" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Source Data Set Beginning Range</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="autoEnd" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Source Data Ending Range</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="groupBy" type="ST_GroupBy" default="range">
        <xsd:annotation>
            <xsd:documentation>Group By</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="startNum" type="xsd:double">
        <xsd:annotation>
            <xsd:documentation>Numeric Grouping Start Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="endNum" type="xsd:double">
        <xsd:annotation>
            <xsd:documentation>Numeric Grouping End Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="startDate" type="xsd:dateTime">
        <xsd:annotation>
            <xsd:documentation>Date Grouping Start Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="endDate" type="xsd:dateTime">
        <xsd:annotation>
            <xsd:documentation>Date Grouping End Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="groupInterval" type="xsd:double" default="1">
        <xsd:annotation>
            <xsd:documentation>Grouping Interval</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
autoStart nsM:autoStart true (Optional)
autoEnd nsM:autoEnd true (Optional)
groupBy nsM:groupBy range (Optional)
startNum nsM:startNum (Optional)
endNum nsM:endNum (Optional)
startDate nsM:startDate (Optional)
endDate nsM:endDate (Optional)
groupInterval nsM:groupInterval 1 (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:rangePr
