Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_RelativeRect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract
Collapse XSD Schema Diagram:

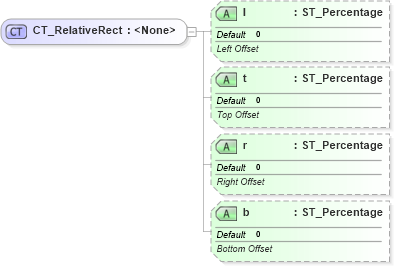

Drilldown into b in schema dml-basetypes_xsd Drilldown into r in schema dml-basetypes_xsd Drilldown into t in schema dml-basetypes_xsd Drilldown into l in schema dml-basetypes_xsdXSD Diagram of CT_RelativeRect in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_RelativeRect">
    <xsd:attribute name="l" type="ST_Percentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Left Offset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="t" type="ST_Percentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Top Offset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="r" type="ST_Percentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Right Offset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="b" type="ST_Percentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Bottom Offset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
l a:l 0 Optional
t a:t 0 Optional
r a:r 0 Optional
b a:b 0 Optional
Collapse Derivation Tree:
Collapse References:
a:fillRecta:fillToRect, a:srcRect, a:tileRect,
