Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_RelIds
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Abstract
Collapse XSD Schema Diagram:

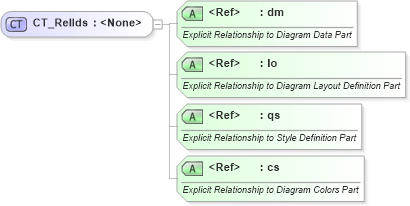

Drilldown into cs in schema shared-relationshipreference_xsd Drilldown into qs in schema shared-relationshipreference_xsd Drilldown into lo in schema shared-relationshipreference_xsd Drilldown into dm in schema shared-relationshipreference_xsdXSD Diagram of CT_RelIds in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_RelIds">
    <xsd:attribute ref="r:dm" use="required">
        <xsd:annotation>
            <xsd:documentation>Explicit Relationship to Diagram Data Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:lo" use="required">
        <xsd:annotation>
            <xsd:documentation>Explicit Relationship to Diagram Layout Definition Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:qs" use="required">
        <xsd:annotation>
            <xsd:documentation>Explicit Relationship to Style Definition Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:cs" use="required">
        <xsd:annotation>
            <xsd:documentation>Explicit Relationship to Diagram Colors Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
dm r:dm Required
lo r:lo Required
qs r:qs Required
cs r:cs Required
Collapse Derivation Tree:
Collapse References:
nsC:relIds
