Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Scale2D
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract
Collapse XSD Schema Diagram:

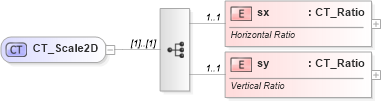

Drilldown into sy in schema dml-basetypes_xsd Drilldown into sx in schema dml-basetypes_xsdXSD Diagram of CT_Scale2D in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Scale2D">
    <xsd:sequence>
        <xsd:element name="sx" type="CT_Ratio" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Horizontal Ratio</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sy" type="CT_Ratio" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Vertical Ratio</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sx a:sx 1 1
sy a:sy 1 1
Collapse Derivation Tree:
Collapse References:
p:scale
